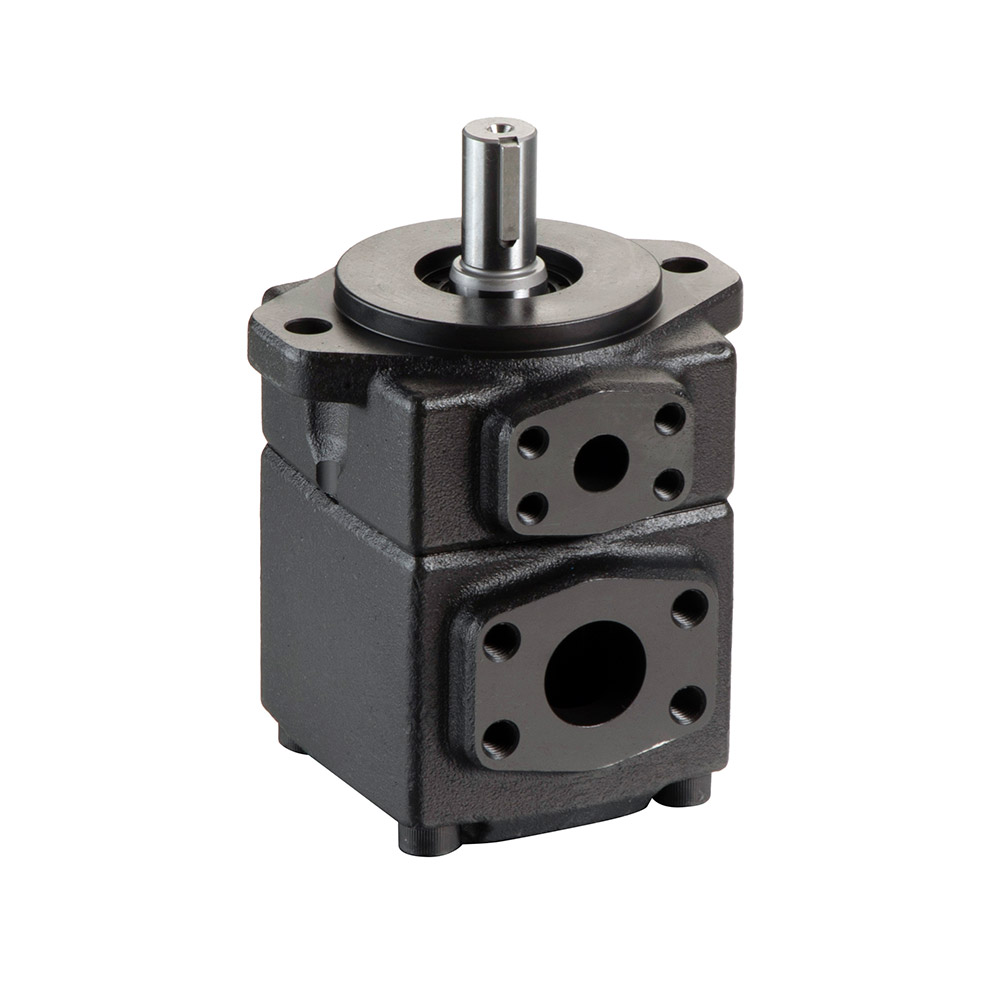

Yuken-PV2R-Series-Hydraulic-Low-Noise-Single-Double-Rotary-Sliding-Variable-Displacement-Unbalanced-Fixed-Displacement-Volt-Vane-Pump.jpg
Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (1).jpg
Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (2).jpg
Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (3).jpg
Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (4).jpg
Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (9).jpg

Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump

YUKEN PV2R Series Vane Pumps: Precision and Quiet Performance for Advanced Manufacturing Systems

PV2R series of vane pumps with high pressure and lower noise are high- performance products, which are developed and domestically produced  by our company, featured by advanced performance, reasonable structure, good reliability, lower noise, ultra-low pulse and stable quality and so on. Precisely made, the product can be used in the equipment with high precision and low noise, and is widely used in cutting, plastic, leather, forging and engineering machinery fields, and the like.

    Contact us
    Product Description
    Applications

    Application in High-Precision Machine Tools

    High-precision machine tools like CNC machining centers, precision grinders, and gear shaping machines need hydraulic systems that are very rigid, have very little vibration, and can control movement at the micron level. The PV2R series pump is widely used for the following purposes:
    1.Spindle Clamping and Tool Changing Systems
    The PV2R pump provides steady hydraulic pressure to the chuck actuators and automatic tool changers, making sure the clamping force is always the same and the response is quick. This helps prevent small slips of tools or workpieces that can happen when pressure changes, which keeps the machining precise.
    2.Hydraulic Balancing for Guideways and Ball Screws
    In heavy-duty cutting machines, the PV2R pump provides constant pressure to hydraulic counterbalance cylinders, enhancing the performance of components such as saddles and tables. This reduces the load on motors and enables high-speed, precision positioning.
    3.Hydrostatic Bearing Lubrication
    In ultra-precision grinding or milling machines, hydrostatic spindle systems need a steady and constant oil film pressure. The low-pressure pulsation from the PV2R pump helps reduce oil film oscillation, which stops surface finish issues like chatter marks.
    Made with very accurate parts and a special blade shape, the PV2R pump reduces pressure changes and shaking. This helps it run quietly and smoothly, which is important for machines that need a lot of precision, like CNC grinders, measuring tools, and very fine injection molding machines. It also runs quietly, making it a good choice for places like cleanrooms, labs, and automated factories where noise levels are closely managed.
    • forging-machine
    • high-precision-cutting-machine
    • shoemaking-machine
    • Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (1)
    • Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (2)
    • Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (3)
    • Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (4)
    • Yuken PV2R Series Hydraulic Low Noise Single Double Rotary Sliding Variable Displacement Unbalanced Fixed Displacement Volt Vane Pump (9)
    PV2R Series Vane Pump detail

    Single Pumps

    Model

    Displacement
    (mL/r)

    Max.pressure(MPa )

    Speed(r/min)

    Input power
    (kW)

    Special oil

    Antiwear oil

    Common oil

    Min.

    Max.

    PV2R1-4

    4.3

    21

    17.5

    16

    750

    1800

    2.1

    PV2R1-6

    6.5

    3.2

    PV2R1-8

    8.5

    4.5

    PV2R1-10

    10.8

    5.4

    PV2R1-12

    12.8

    6.1

    PV2R1-14

    14.5

    6.9

    PV2R1-17

    16.2

    7.9

    PV2R1-19

    20.1

    9.6

    PV2R1-23

    22.5

    10.5

    PV2R1-25

    25.3

    12.5

    PV2R1-28

    29.6

    14.0

    PV2R1-31

    32.3

    16

    16

    15.5

    PV2R2-26

    25.3

    21

    17.5

    14

    600

    1800

    11.7

    PV2R2-33

    32.3

    15.5

    PV2R2-41

    39.8

    18.9

    PV2R2-47

    49.8

    23.2

    PV2R2-53

    51.5

    24

    PV2R2-59

    55.8

    24.9

    PV2R2-65

    63.7

    29.4

    PV2R2-70

    70.3

    16

    1200

    31.6

    PV2R2-79

    78.1

    35.7

    PV2R2-85

    82.7

    37.5

    PV2R3-52

    51.5

    21

    17.5

    14

    600

    1800

    23.2

    PV2R3-60

    63.7

    29.4

    PV2R3-66

    66.6

    34.2

    PV2R3-76

    75.5

    37.7

    PV2R3-94

    89.5

    41.2

    PV2R3-116

    118

    16

    16

    50

    PV2R3-125

    122.2

    1200

    59.9

    PV2R3-136

    136

    66.7

    Note:1.When pressure of pumps exceeds 16MPa,with displacement of"4""6'""8",speeds should be more than 1450r/min.
            2.Reduce the negative pressure of the inlet when the single pumps or double pumps with large displacement at high speed.
            3.In use of synthetic hydraulic fluids and water containing hydraulic fluids,limit the max speed at 1200r/min.
            4.Speed at 1000r/min is suggested on occasions with lower noise strictly required.
            5.Noisiness is available in working conditions of 14MPa and 1200r/min.
            6.Input power is available in working conditions of 16MPa and 1500r/min.

    Double Pumps

    PV2R Series Vane Pump detail 2

    Installation Dimensions

    Installation-Dimensions
    Shaft type A B C D F G H
    F1 178.5 69.5 44.5 36 19.05 21.24 4.76
    F 184 75 50 41 15.88 17.68 3.97
    Installation-Dimensions
    Shaft type F G
    F1 25.4 28.18
    F 22.23 25.01
    Installation-Dimensions
    Installation-Dimensions
    Shaft type A B C D E F G
    F1 326 95 67 55 40 25.4 28.18
    F 318 87 59 47 32 22.23 25.01
    Installation-Dimensions
    Installation-Dimensions

    Port flange kits

    PV2R Series Vane Pump detail (3)

    Double Pumps

    Flange
    model

    Corresponding
    pipe
    specifications

    Dimensions mm

    O Ring
    GB3452.1-
    2005

    PV2R Series

    C

    D

    E

    F

    H

    J

    L

    N

    Q

    T

    socket
    head   screw

    Dimensions
    K

    Corresponding oil pump
    interface

    F04-A

    1/2"

    40

    54

    17.5

    38.1

    9.0

    27

    Rc1/2"

    一

    一

    13

    21.2x2.65

    M8x30mm

    12.5

    PV2R1 outlet,PV2R21,
    PV2R31 outlet of cover end pump

    F04-B

    一

    11

    22.5

    F06-A

    3/4"

    50.5

    65.5

    22.2

    47.6

    11.0

    28

    Rc3/4"


    一


    一

    19

    30x3.55

    M10x30mm

    12.5

    PV2R2 outlet,PV2R21 outlet of shaft end pump
    PV2R32 outlet of cover end pump

    F06-B

    一

    12

    28.5

    F08-A

    1"

    56

    71

    26.2

    52.4

    11.0

    30

    Rc1"

    一



    26

    34.5×3.55

    M10x35mm

    17.0

    PV2R1 inlet port

    F08-B



    14

    34.5

    F10-A

    1-1/4"

    64.5

    79.5

    30.2

    58.7

    12.0

    32

    Rc1-1/4”

    一

    -

    32

    40x3.55

    M10x40mm

    19

    PV2R2 iniet port,PV2R3 outlet, PV2R31, PV2R32 outlet of shaft end pump

    F10-B

    -

    16

    43.0

    F12-A

    1-1/2"

    71

    94

    35.7

    69.9

    13.8

    37

    Rc1-1/2"

    一

    一

    38

    50x3.55

    -

    -

    -

    F12-B



    18

    49.1

    F16-A

    2"

    87.5

    103

    42.9

    77.8

    13.8

    38

    Rc2"

    -

    -

    51

    65x3.55

    M12x45mm

    17.5

    PV2R3、PV2R21 inlet

    F16-B

    一

    20

    61.0

    F20-A

    2-1/2"

    96

    115

    50.8

    88.9

    13.8

    42

    Rc2-1/2"





    63

    75x3.55

    -

    一



    F20-B

    -

    22

    77.1

    F24-A

    3"

    123

    136

    61.9

    106.4

    17.0

    45

    Rc3"

    -



    76

    85x3.55

    M16x45mm

    16.5

    PV2R31、PV2R32 inlet

    F24-B

    一

    25

    90.0

    F28-A

    3-1/2"

    135

    153

    69.9

    120.7

    17.5

    46

    Rc3-1/2"

    一



    89

    100x3.55

    一





    F28-B



    20

    102.8

    F32-A
    F32-B

    4"

    145

    162

    77.8

    130.2

    17.0

    5040

    Rc4"

    一

    一

    102

    115x3.55





    一

    一

    28

    115.5

     Flange
    model

    V、V Q、SOP、T6 Series

    socket head screw

    Dimensions
    K

    Corresponding oil pump interface

    F04-A

    一

    一

    一

    F04-B

    F06-A

    3/8"-16UNCx1.5"(38.1mm)

    20.6

    20V(Q)、SQP1 outlet,2520V(Q)、3520V(Q)、4520V(Q)、SQP21、SQP31、SQP41、T6CC(01、11 oil port dimensions)、T6DCC(01 oil port dimensions)、T6DDCS(01 oil port dimensions)、T6EDC(S)(01 oil port dimensions) outlet of cover end pump

    F06-B

    F08-A

    3/8"-16UNCx1.5"(38.1mm)

    20.1

    25V(Q)、SQP2、T6C outlet port,2520V(Q)、SQP21、T6CC outlet of shaft end pump, 3525V(Q)、4525V(Q)、SQP32、SQP42、T6CC(00、10 oil port dimensions)、T6EC、T6DCC(00 oil port dimensions)、T6DDCS(00 oil port dimensions)、T6EDC(S)(00 oil port dimensions) outlet of cover end pump、T6DCC outlet of middle pump

    F08-B

    F10-A

    7/16"-14UNCx1.575"
    (40mm)

    19.0

    SQP1 inlet,35V(Q)、SQP3、T6D outlet,3520V(Q)、3525V(Q)、SQP31、SQP32、T6DC、T6DCC、T6DDCS outlet of shaft end pump,4535V(Q)、SQP43、T6ED outlet of cover end pump,T6DDCS、T6EDC(S) outlet of middle pump

    F10-B

    F12-A

    1/2"-13UNCx1.75"(44.5mm)

    19.0

    20V(Q)、25V(Q)、SQP2、T6C inlet,45V(Q)、SQP4、T6E outlet, 4535V(Q)、SQP43、T6EC、T6ED、T6EDC(S) outlet of shaft end pump

    F12-B

    F16-A

    1/2"-13UNCx1.75"(44.5mm)

    17.0

    35V(Q)、SQP3、T6D inlet

    F16-B

    F20-A

    1/2“-13UNCx1.75”(44.5mm)

    16.5

    2520V(Q)、SQP21、T6CC(10、11/oil port dimensions) inlet

    F20-B

    F24-A

    5/8"-11UNCx2"(50.8mm)

    22.3

    45V(Q)、SQP4、T6E inlet,3520V(Q)、3525V(Q)、SQP31、SQP32、T6CC (00、01/oil port dimensions)、T6DC inlet

    F24-B

    F28-A

    5/8"-11UNCx2"(50.8mm)

    22.3

    4520V(Q)、4525V(Q)、SQP41、SQP42、T6EC inlet

    F28-B

    F32-A

    5/8"-11UNCx2"(50.8mm)

    19.3

    4535V(Q)、SQP43、T6ED、T6DCC、T6DDCS、T6EDC(S) inlet

    F32-B

    5/8"-11UNCx1.75"(44.5mm)

    23.0
