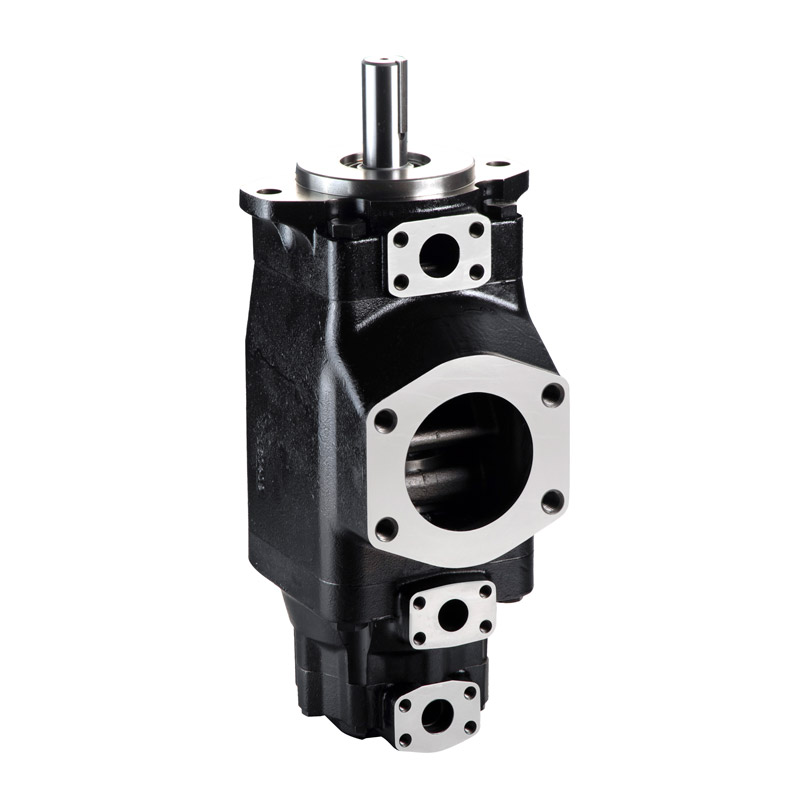

Durable Denison T67DBB T6DC T67DDBS Series Hydraulic Vane Pump for Heavy Equipment

VICKS T6T7 series triple pump always show good performance on hydraulic efficiency and versatility for complex industrial machinery. By combining three independent pump sections into a single compact unit, it provides multiple hydraulic power levers from one drive location. This design is engineered for applications requiring coinstantaneous and varying hydraulic functions with different pressure and flow demands.

Product Description

Applications

Key Technical Features

1.With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.

2.This vane pump can fit wide viscosity hydraulic medium, and be started at low temperature and work at high temperature.

3.As the vane pump adopts bilabial structure vane, it has high oil polution resistance and wide speed scope.

Application in Die-Casting Machines

Similar to Injection Moulding Machines, Die-casting Machines require a sequence of powerful and fast actions. The triple pump just here by perfectly providing:

Rapid Approach: One pump section supplies high flow for the fast forward movement of the injection piston.

Slow-Shot and Intensification: The other two sections provide the incrementally higher pressures demanded to fill the die and strengthen to produce dense, porosity-free castings.

The compact design saves critical space within the machine's power unit.

Why the T6T7 Series is the Superior Choice

Energy Efficiency: The system is designed to keep each pump part working exactly as needed, which greatly reduces extra fluid movement and wasted energy. This leads to less power use and cooler operating temperatures.

Unmatched Reliability: The die-casting environment is very tough, characterized by intense high temperature and possible contamination. VICKS T6T7's hardened components, super bearing design, and tolerance for contaminant ensure exceptional service life and minimize unexpected downtime.

Space Optimization: Compared to installing three separate pumps, VICKS compact triple-pump design saves critical space within the machine's power unit streamlining plumbing and maintenance.

In order to seek to maximize output, minimize energy costs, and guarantee the consistent quality of every single part of die-casters, VICKS T6T7 series triple pump is not just a component—it is a strategic investment in operational excellence.

Model Representation

T6DCC

(M)

-042

-017

-010

-1

-A

Series

Type Code

Flow-shaft end Pump

Flow-mid pump

Flow-cover end pump

Shaft type

Rotation

Port positions

Design number

Sealing Level

Port dimensions

T67DBB (S)

NO:

industrial type

M: truck type

S: truck type use SAE SAE C J744

installation flange

014/B14, 017/B17,

020/B20, 024/B24,

028/B28, 031/B31,

035/B35, 038/B38,

042/B42, 045/B45,

050/B50, 061

B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20

See size of shaft

Viewed from shaft end of pump

R-

right hand for clockwise

L-

left hand for counter- clockwise

see picture below

1-S1,

(Buna) NBR

Nitrile rubber

5-S5,

(Viton) Fluororubber

T67DCB (S)

014/B14, 017/B17,

020/B20, 024/B24,

028/B28, 031/B31,

035/B35, 038/B38,

042/B42, 045/B45,

050/B50, 061

003/B03, 005/B05,

006/B06, 008/B08,

010/B10, 012/B12,

014/B14, 017/B17,

020/B20, 022/B22,

025/B25, 028/B28,

031/B31

B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20

T6DCC

014/B14, 017/B17,

020/B20, 024/B24,

028/B28, 031/B31,

035/B35, 038/B38,

042/B42, 045/B45,

050/B50, 061

003/B03, 005/B05,

006/B06, 008/B08,

010/B10, 012/B12,

014/B14, 017/B17,

020/B20, 022/B22,

025/B25, 028/B28,

031/B31

003/B03, 005/B05,

006/B06, 008/B08,

010/B10, 012/B12,

014/B14, 017/B17,

020/B20, 022/B22,

025/B25, 028/B28,

031/B31

00、01，

See installation dimensions

T67DDBS

014/B14, 017/B17,

020/B20, 024/B24,

028/B28, 031/B31,

035/B35, 038/B38,

042/B42, 045/B45,

050/B50, 061

014/B14, 017/B17,

020/B20, 024/B24,

028/B28, 031/B31,

035/B35, 038/B38,

042/B42, 045/B45,

050/B50, 061

B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20

T6DDC

014/B14, 017/B17,

020/B20, 024/B24,

028/B28, 031/B31,

035/B35, 038/B38,

042/B42, 045/B45,

050/B50, 061

014/B14, 017/B17,

020/B20, 024/B24,

028/B28, 031/B31,

035/B35, 038/B38,

042/B42, 045/B45,

050/B50, 061

003/B03, 005/B05,

006/B06, 008/B08,

010/B10, 012/B12,

014/B14, 017/B17,

020/B20, 022/B22,

025/B25, 028/B28,

031/B31

00、01，

See installation dimensions

T6EDB (S)

042, 045, 050, 052,

057, 062, 066, 072,

085

014/B14, 017/B17,

020/B20, 024/B24,

028/B28, 031/B31,

035/B35, 038/B38,

042/B42, 045/B45,

050/B50, 061

B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20

T6EDC

042, 045, 050, 052,

057, 062, 066, 072,

085

014/B14, 017/B17,

020/B20, 024/B24,

028/B28, 031/B31,

035/B35, 038/B38,

042/B42, 045/B45,

050/B50, 061

003/B03, 005/B05,

006/B06, 008/B08,

010/B10, 012/B12,

014/B14, 017/B17,

020/B20, 022/B22,

025/B25, 028/B28,

031/B31

00、01，

See installation dimensions

003/B03

In displacement code, 0 means single steering valve plate structure, B means the two steering valve plate structure.

The data of relevant series ,model are unanimous.Please see T6 series-single pumps data

Port positions(Viewed from shaft end of pump)

T67DBB(S)

T67DCB(S) T6DCC T67DDBS T6DDC T6EDB(S) T6EDC

Installation Dimensions

T6DCC T67DCB(S) T67DBB(S)
E	38.1
F	138.0
G	404.0
I	119.3
J1 J2	127.00 126.95
N	181.0
O	212.4
ΦP	17.5
Q	84.4

Shaft Extension

Model	Shaft code	Max torque (N.m)	L1	L2	DIA	K1xK2	H1	M1
T67DBB(S) T67DCB(S) T6DCC	1	721	83.6	49.3	31.750/31.700	6.35x6.30	34.6	-
	2	1108	89.7	50.8	38.100/38.075	9.52x9.47	42.4	-
	3	●	55.2	38.0	SAE J498b 1class，Diametral pitch12/24，14T			-
	4	●	61.0	31.5	SAE J498b 1class，Diametral pitch12/24，17T			-
T6DCC	5	●	76.0	48.0	SAE J498b 1class，Diametral pitch12/24，14T			-

●work at maximum flow and pressure.

	Oil port		Flange	Install Dimensions(mm)
	Oil port		Flange	A1	B1	ΦC1	D1	T1 Thread
T67DBB(S) T67DCB(S)	P1	1-1/4"	F10	30.2	58.7	31.8	82.6	7/16"-14UNCx22.3
	P2	1"	F08	26.2	52.4	25.4	101.6	3/8"-16UNCx19.0
	P3	3/4"	F06	22.2	47.6	19.0	74.7	3/8"-16UNCx19.0
	S	4"	F32	77.8	130.2	101.6	127	5/8"-11UNCx30.0
T6DCC	P1	1-1/4"	F10	30.2	58.7	31.8	82.6	7/16"-14UNCx22.3
	P2	1"	F08	26.2	52.4	25.4	101.6	3/8"-16UNCx19.0
	P3	01：3/4"	F06	22.2	47.6	19.0	74.7	3/8"-16UNCx19.0
	P3	00：1"	F08	26.2	52.4	25.4	74.7	3/8"-16UNCx19.0
	S	4"	F32	77.8	130.2	101.6	127	5/8"-11UNCx30.0

T6DDCS T67DDBS
E	38.1
F	148.5
G	455.0
I	125.0
J1 J2	127.00 126.95
N	181.0
O	213.0
ΦP	17.5
Q	120.0

Model	Shaft code	Max torque (N.m)	L1	L2	DIA	K1xK2	H1	M1
T67DDBS T6DDCS	1	686	84.0	49.3	31.750/31.700	7.94x7.89	35.27	M10x20
	2	1148	91.0	50.8	38.100/38.075	9.52x9.47	42.36	M10x20
	5	883	84.0	60.0	34.900/34.850	7.94x7.89	38.42	M10x20
	3	971	56.0	38.0	SAE J498b 1class，Diametral pitch 12/24，14T			-
	4	●	62.0	31.5	SAE J498b 1class，Diametral pitch 12/24，17T			-

●work at maximum flow and pressure.

	Oil port		Flange	Install Dimensions(mm)
	Oil port		Flange	A1	B1	ΦC1	D1	T1 Thread
T67DDBS	P1	1-1/4"	F10	30.2	58.7	31.8	82.6	7/16"-14UNCx22.3
	P2	1-1/4"	F10	30.2	58.7	31.8	101.6	7/16"-14UNCx24.0
	P3	3/4"	F06	22.2	47.6	19.0	74.7	3/8"-16UNCx19.0
	S	4"	F32	77.8	130.2	101.6	115.0	5/8"-11UNCx30.0
T6DDCS	P1	1-1/4"	F10	30.2	58.7	31.8	82.6	7/16"-14UNCx22.3
	P2	1-1/4"	F10	30.2	58.7	31.8	101.6	7/16"-14UNCx24.0
	P3	01：3/4"	F06	22.2	47.6	19.0	74.7	3/8"-16UNCx19.0
	P3	00：1"	F08	26.2	52.4	25.4	74.7	3/8"-16UNCx19.0
	S	4"	F32	77.8	130.2	101.6	115.0	5/8"-11UNCx30.0

T6EDC		T7EEC
E	42.9	E	42.9
F	133.3	F	167.3
G	468.0	G	516.8
I	148.4	I	162.2
J1 J2	250h8	J1 J2	250h8
ΦN	315.0	ΦN	315.0
O	273.0	O	273.0
ΦP	22.0	ΦP	22.0
Q	120.0	Q	120.0

T6EDCS T67EDB(S)		T7EECS
E	42.9	E	42.9
F	133.3	F	167.3
G	468.0	G	516.8
I	148.4	I	162.2
J1 J2	165.10 165.05	J1 J2	165.10 165.05
ΦN	315.0	ΦN	317.5
O	273.0	O	273.0
ΦP	20.8	ΦP	20.8
Q	120.0	Q	120.0

Model	Shaft code	Max torque (N.m)	L1	L2	DIA	K1xK2	H1	M1
T67EDBS, T6EDC T6EDCS	1	●	92.0	63.0	45h7	14h7x9	48.5	M12x24
T6EDCS	2	●	100.0	63.5	44.45/44.40	11.11x11.06	49.3	1/2-UNCx24
T6EDCS	3	●	75.0	48.8	SAE J498b 1class, Diametral pitch8/16, 13T			-
T7EEC(S)	2	●	92.0	63.0	45h7	14h7x9	48.5	M12x24

work at maximum flow and pressure

Oil port			Flange	Install Dimensions(mm)
Oil port			Flange	A1	B1	ΦC1	D1	T1 Thread
T67EDBS	P1	1-1/2"	F12	35.7	69.9	37.1	139.7	1/2"-13UNCx30.0
	P2	1-1/4"	F10	30.2	58.7	31.8	101.6	7/16"-14UNCx24.0
	P3	3/4"	F06	22.2	47.6	19.0	74.7	3/8"-16UNCx19.0
	S	4"	F32	77.8	130.2	101.6	115.0	5/8"-11UNCx30.0
T6EDC T6EDCS	P1	1-1/2"	F12	35.7	69.9	37.1	139.7	1/2"-13UNCx30.0
	P2	1-1/4"	F10	30.2	58.7	31.8	101.6	7/16"-14UNCx24.0
	P3	01：3/4"	F06	22.2	47.6	19.0	74.7	3/8"-16UNCx19.0
	P3	00：1"	F08	26.2	52.4	25.4	74.7	3/8"-16UNCx19.0
	S	4"	F32	77.8	130.2	101.6	115.0	5/8"-11UNCx30.0
T7EEC(S)	P1	1-1/2"	F12	35.7	69.9	37.1	139.7	M12x30
	P2	1-1/2"	F12	35.7	69.9	37.1	98.6	M12x30
	P3	1"	F08	26.2	52.4	25.4	74.7	M10x19
	S	4"	F32	77.8	130.2	101.6	115.0	M16x30
