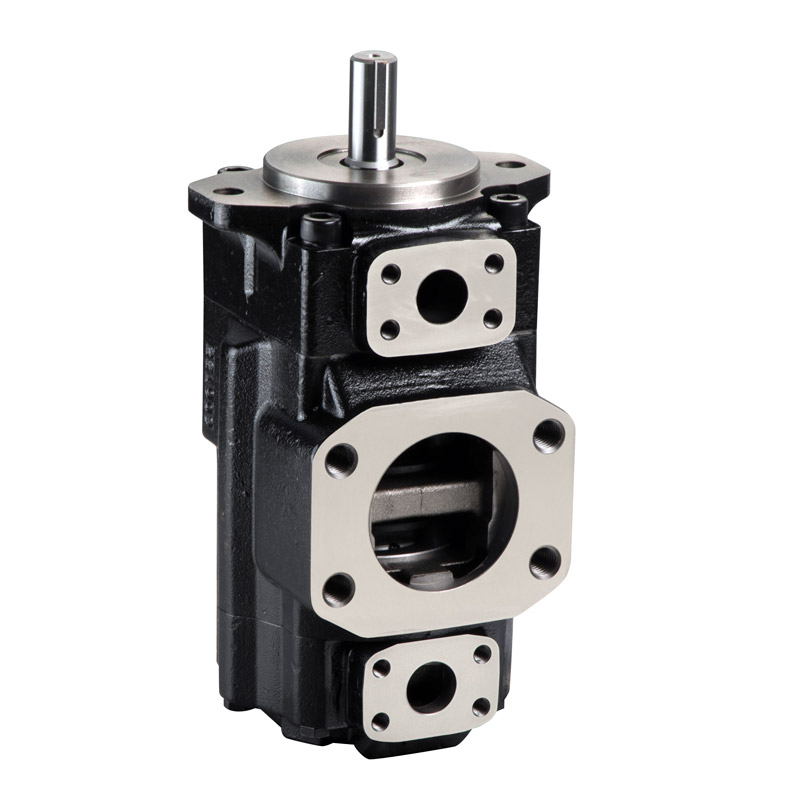

T7DB T6ED T67CB Series Parker Denison Hydraulic Double Vane Pump for Efficleht Fluid Power Solutions

T6/T7 tandem pumps are widely used for plastic machinery, casting machinery, metallurgy machinery, pressing machinery, refining machinery, construction machinery, marine-Machinery.

    Key Technical Features

    1.With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.
    2.This vane pump can fit wide viscosity hydraulic medium, and be started at low temperature and work at high temperature.
    3.As the vane pump adopts bilabial structure vane, it has high oil polution resistance and wide speed scope.

    Primary Application Areas

    Optimizing Industrial Performance: T6/T7 Series Double Pumps in Injection Molding
    In the high-stakes environment of industrial manufacturing, where precision, reliability, and efficiency are paramount, the hydraulic system serves as the core of equipment like injection molding machines (IMMs) and die-casting machines. Vicks high-performance T6 and T7 series double vane pumps are designed to be the best choice for replacing these important systems, providing the strength and precision needed to achieve top efficiency.
    The T6/T7 series double pump setup has two pumps in one small package, both run by the same shaft. This clever design works well for machines that have several different hydraulic systems, each needing different pressure and flow levels.The pumps are well-known for their strong cartridge-style build, ability to handle very high pressure (up to 310 bar), and great efficiency in moving fluid, which helps them work steadily even during long and tough operations.
    Application in Injection Molding Machines (IMMs):
    Injection molding needs to be controlled exactly during different steps of the whole process, including quick-closing the mold, applying strong pressure to shut it, moving the injection screw, and then removing the parts, while the T6/T7 double pump is ideal for all of these.
    Flow-Matched Efficiency: One of the pumps can supply high fluid for quick and low-pressure actions such as closing the mold, while the other smaller pump can perfectly provide the strong pressure required for clamping and injection. This avoids energy waste by using a big pump on small flow demands, which could save a lot of energy and reduce heat.
    Unwavering Clamping Force: It is very important that the pump could always keep steady and high pressure to keep the mold tightly closed during injection, so the part doesn’t remove. This helps make sure each part will be the same quality every time.
    Durability: VICKS T6/T7 pump is engineered to resist contamination, making it reliable even in hot conditions where hydraulic fluid might break down. This could prevent unexpected downtime and keeps the machine running smoothly.
    • metallurgical machinery
    • marine machinery 2
    • injection machine 1
    • refining-machinery
    T6T7-Parker-Denison
    NO. Part Qty NO. Part Qty NO. Part Qty
    1 shaft 1 6 cir clip for shaft 2 11 middle body 1
    2 straight key 1 7 ball bearing 1 12 rear cartridge 1
    3 Hexagon head bolt 4 8 cir clip for hole 1 13 rectangle seal ring 1
    4 front cover 1 9 rectangle seal ring 1 14 rear cover 1
    5 shaft seal 1 10 front cartridge 1 15 Hexagon head bolt 4
    • T6t7 Parker Denison Hydraulic Double Vane Pump for Efficient Fluid Power Solutions  (1)
    • T6t7 Parker Denison Hydraulic Double Vane Pump for Efficient Fluid Power Solutions  (8)
    • T6t7 Parker Denison Hydraulic Double Vane Pump for Efficient Fluid Power Solutions (3)
    • T6t7 Parker Denison Hydraulic Double Vane Pump for Efficient Fluid Power Solutions (5)
    • T6t7 Parker Denison Hydraulic Double Vane Pump for Efficient Fluid Power Solutions (10)

    Port positions(Viewed from shaft end of pump)

    T6 & T7 Series Tandem Pumps Dual-Flow Solutions for Maximum Efficiency

    Model Designation

    T6CC

    S

    W

    -025

    -017

    -1

    R

    02

    -C

    1

    10

    Series

    Type Code

    Vice Type Code

    Flow-shaft end Pump

    Flow-cover end pump

    Shaft type



    Rotation

    Port positions

    Design number

    Sealing Level

    Port dimensions



    T7BB





    NO: USE ISO 3019

    Installation Flange



    S: USE

    SAE C J744

    installation flange















    NO

    B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20

    B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20













































    See size of shaft

































    Viewed from shaft end of pump



    R-right hand for clockwise



    L-  left   hand for counter- clockwise













































    see picture below















































    C



































    1-S1,

    (Buna) NBR

    Nitrile rubber





    5-S5,

    (Viton) Fluororubber

    00, 01, M0, M1

    See installation dimensions



    T7DB



    B14, B17, B20, B22, B24, B28, B31, B35, B38, B42



    B02, B03, B04, B05, B06, B07, B08, B10, B12, B15

    00, 01, M1, M0

    see installation dimensions



    T6DD

    B14, B17, B20, B24, B28, B31, B35, B38, B42, B45, B50, B61

    B14, B17, B20, B24, B28, B31, B35, B38, B42, B45, B50, B61









    No

    T7DD

    B14, B17, B20, B22, B24, B28, B31, B35, B38, B42

    B14, B17, B20, B22, B24, B28, B31, B35, B38, B42



    T7EB

    042, 045, 050, 052, 054,

    057, 062, 066, 072, 085

    B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20

    T7ED

    042, 045, 050, 052, 054,

    057, 062, 066, 072, 085

    B14, B17, B20, B22, B24, B28, B31, B35, B38, B42

    T7EE

    042, 045, 050, 052, 054,

    057, 062, 066, 072, 085

    042, 045, 050, 052, 054,

    057, 062, 066, 072, 085



    T67CB





















    NO:

    industrial type

    M: truck type P: truck type double seal kits





















    W:

    Heavy str keyed shaft

    003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31



    B02, B03, B04, B05, B06, B07, B08, B10, B12, B15



    11, M1



    T6CC

    003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31

    003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31

    00, 01, 10, 11, M0, M1, W0, W1

    See installation dimensions



    T67DB

    014/B14, 017/B17, 020/ B20, 024/B24, 028/B28, 031/B31, 035/B35, 038/ B38, 042/B42, 045/B45, 050/B50, 061



    B02, B03, B04, B05, B06, B07, B08, B10, B12, B15, B20









    00, 01, M0, M1

    See installation dimensions



    T67DC



    B14, B17, B20, B22, B24, B28, B31, B35, B38, B42

    003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31



    T6DC

    014/B14, 017/B17, 020/ B20, 024/B24, 028/B28, 031/B31, 035/B35, 038/ B38, 042/B42, 045/B45, 050/B50, 061

    003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31



    T67EB

    042, 045, 050, 052, 057,

    062, 066, 072, 085

    B02, B03, B04, B05, B06, B07,  B08, B10, B12, B15, B20













    No



    T6EC



    042, 045, 050, 052, 057,

    062, 066, 072, 085

    003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31



    T67EC



    042, 045, 050, 052, 057,

    062, 066, 072, 085

    003/B03, 005/B05, 006/ B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/ B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31



    T6ED



    042, 045, 050, 052, 057,

    062, 066, 072, 085

    014/B14, 017/B17, 020/ B20, 024/B24, 028/B28, 031/B31, 035/B35, 038/ B38, 042/B42, 045/B45, 050/B50, 061

    T6EE

    042, 045, 050, 052, 057,

    062, 066, 072, 085

    042, 045, 050, 052, 057,

    062, 066, 072, 085

    003/B03
    In displacement code, 0 means single steering valve plate structure, B means the two steering valve plate structure.
    The data of relevant series ,model are unanimous.Please see T6 series-single pumps data

    Installation Dimensions

    T6T7-Parker-Denison
    T6CC T6DC T6EC T6ED T6EE T6EES
    E 38.1 38.1 52.3 52.3 42.9 42.9
    F 101.6 114.3 118.5 133.5 167.3 167.3
    G 265.6 286 331.6 361 406.8 406.8
    I 88.2 109.5 136.7 148.2 157.9 157.9
    J1
    J2
    101.6 127 127 127 250 165.1
    101.55 126.95 126.95 126.95 249.93 165.05
    N 146 181 181 181 222.7x222.7 224.5x224.5
    O 174.5 212.4 213 213 273x273 273x273
    ΦP 14.3 17.5 17.5 17.5 22 20.6

    Code

    P1

    P2

    S

      T6CC

    00(0M)

    1"

    1"

    3"

    01(W0)

    1"

    3/4"

    3"

    10(1M)

    1"

    1"

    2-1/2"

    11(W1)

    1"

    3/4"

    2-1/2"

    T6DC T7DB(S)

    00(M0)

    1-1/4"

    1"

    3"

    01(M1)

    1-1/4"

    3/4"

    3"



    Oil port





    Flange

    Install Dimensions(mm)

    A1

    B1

    ΦC1

    D1

    T1Thread





    T6CC

    P1

    1"

    F08

    26.2

    52.4

    25.4

    76.2

    3/8"-16UNCx19.0 (M10x19)



    P2

    3/4"

    F06

    22.2

    47.6

    19.0

    76.2



    3/8"-16UNCx19.0(M10x19)

    1"

    F08

    26.2

    52.4

    25.4

    74.7



    S

    2-1/2"

    F20

    50.8

    88.9

    63.5

    84.1

    1/2"-13UNCx23.9(M12x24)

    3"

    F24

    61.9

    106.4

    76.2

    84.1

    5/8"-11UNCx28.4(M16x28)





    T6DC

    P1

    1-1/4"

    F10

    30.2

    58.7

    31.8

    82.6

    7/16"-14UNCx22.3(M12x22)



    P2

    3/4"

    F06

    22.2

    47.6

    19.0

    74.7



    3/8"-16UNCx19.0(M10x19)

    1"

    F08

    26.2

    52.4

    25.4

    74.7

    S

    3"

    F24

    61.9

    106.4

    76.2

    88.9

    5/8"-11UNCx28.4(M16x28.4)



    T6EC

    P1

    1-1/2"

    F12

    35.7

    69.9

    38.1

    98.6

    1/2"-13UNCx23.4

    P2

    1"

    F08

    26.2

    52.4

    25.4

    74.7

    3/8"-16UNCx19.0

    S

    3-1/2"

    F28

    69.9

    120.7

    88.9

    102.4

    5/8"-11UNCx29.5



    T6ED

    P1

    1-1/2"

    F12

    35.7

    69.9

    38.1

    98.6

    1/2"-13UNCx23.4

    P2

    1-1/4"

    F10

    30.2

    58.7

    31.8

    101.6

    7/16"-14UNCx24.0

    S

    4"

    F32

    77.8

    130.2

    101.6

    102.4

    5/8"-11UNCx30.0



    T6EE(S)

    P1

    1-1/2"

    F12

    35.7

    69.9

    38.1

    139.7

    1/2"-13UNCx30

    P2

    1-1/2"

    F12

    35.7

    69.9

    37.1

    98.6

    1/2"-13UNCx23.4

    S

    4"

    F32

    77.8

    130.2

    101.6

    115

    5/8"-11UNCx30

    T6T7-Parker-Denison
    T7BB T7BBS T67CB T7DB T7DBS T67DB T7EB T7EBS T67EB
    E 38.1 38.1 38.1 38.1 38.1 38.1 52.3 52.3 52.3
    F 101.6 101.6 101.6 114.3 114.3 114.3 118.5 118.5 118.5
    G 262.2 262.2 265.6 286 286 286 331.6 331.6 331.6
    I 98.6 98.6 88.2 109.5 109.5 109.5 136.7 136.7 136.7
    J1
    J2
    100 101.6 101.6 125 127 127 125 127 127
    99.97 101.55 101.55 124.94 126.95 126.95 124.94 126.95 126.95
    N 140 146 146 180 181 181 180 181 181
    O 174.5 174.5 174.5 212.4 212.4 212.4 213 213 213
    ΦP 14 14.3 14.3 18 17.5 17.5 18 17.5 17.5

    Code

    P1

    P2

    S

    T7BB(S)

    00(0M)

    1"

    3/4"

    2-1/2"

    01(M1)

    3/4"

    3/4"

    2-1/2"

    Oilport



    Flange

    InstallDimensions(mm)

    A1

    B1

    ΦC1

    D1

    T1Thread



    T7BB(S)

    P1

    1"

    F08

    26.2

    52.4

    25.4

    76.2

    3/8"-16UNCx19.0 (M10x19)

    3/4"

    F06

    22.2

    47.6

    19.0

    76.2

    P2

    3/4"

    F06

    22.2

    47.6

    19.0

    76.2

    3/8"-16UNCx19.0(M10x19)

    S

    2-1/2"

    F20

    50.8

    88.9

    63.5

    84.1

    1/2"-13UNCx23.9(M12x24)



    T7DB(S)

    P1

    1-1/4"

    F10

    30.2

    58.7

    31.8

    82.6

    7/16"-14UNCx22.3(M12x22)

    P2

    3/4"

    F06

    22.2

    47.6

    19.0

    74.7

    3/8"-16UNCx19.0(M10x19)

    1"

    F08

    26.2

    52.4

    25.4

    74.7

    S

    3"

    F24

    61.9

    106.4

    76.2

    88.9

    5/8"-11UNCx29(M16x29)



    T67CB

    P1

    1"

    F08

    26.2

    52.4

    25.4

    76.2

    3/8"-16UNCx19.0(M10x19)

    P2

    3/4"

    F06

    22.2

    47.6

    19.0

    76.2

    3/8"-16UNCx19.0(M10x19)

    S

    2-1/2"

    F20

    50.8

    88.9

    63.5

    84.1

    1/2"-13UNCx23.9(M12x30)



    T67DB

    P1

    1-1/4"

    F10

    30.2

    58.7

    31.8

    82.6

    7/16"-14UNCx22.3

    P2

    3/4"

    F06

    22.2

    47.6

    19.0

    76.2

    3/8"-16UNCx19.0

    S

    3"

    F24

    61.9

    106.4

    76.2

    88.9

    5/8"-11UNC×29.5



    T67EB

    P1

    1-1/2"

    F12

    35.7

    69.9

    38.1

    98.6

    1/2"-13UNCx23.4

    P2

    3/4"

    F06

    22.2

    47.6

    19.0

    76.2

    3/8"-16UNCx19.0

    S

    3-1/2"

    F28

    69.9

    120.7

    88.9

    102.4

    5/8"-11UNC×29.5



    T7EB(S)

    P1

    1-1/2"

    F12

    35.7

    69.9

    38.1

    98.6

    1/2"-13UNCx23.4

    P2

    3/4"

    F06

    22.2

    47.6

    19.0

    74.7

    3/8"-16UNCx19.0

    S

    3-1/2"

    F28

    69.9

    120.7

    88.9

    102.4

    5/8"-11UNCx29.5

    T6T7-Parker-Denison
    T6DD T7DD T6DDS T7DDS T67DC T7ED T7EDS T67EC T7EE T7EES
    E 38.3 38.3 38.1 52.3 52.3 52.3 42.9 42.9
    F 148.3 148.3 114.3 133.5 133.5 118.5 167.3 167.3
    G 347.7 347.7 286 361 361 331.6 406.8 406.8
    I 134.2 134.2 109.5 148.2 148.2 136.7 157.9 157.9
    J1 J2 125 127 127 125 127 127 250 165.1
    124.937 126.95 126.95 124.94 126.95 126.95 249.93 165.05
    N 180 181 181 180 181 181 222.7x222.7 224.5x224.5
    O 213 213 212.4 213 213 213 273x273 273x273
    ΦP 14 14.3 17.5 18 17.5 17.5 22 20.6



    Oil port





    Flange

    Install Dimensions(mm)

    A1

    B1

    ΦC1

    D1

    T1 Thread



    T6DD(S) T7DD(S)

    P1

    1-1/4"

    F10

    30.2

    58.7

    31.8

    101.6

    7/16"-14UNCx22.3

    P2

    1-1/4"

    F10

    30.2

    58.7

    31.8

    101.6

    7/16"-14UNCx24

    S

    4"

    F32

    77.8

    130.2

    101.6

    114.9

    5/8"-11UNCx30



    T7ED(S)

    P1

    1-1/2"

    F12

    35.7

    69.9

    37.1

    98.6

    1/2"-13UNCx23.4

    P2

    1-1/4"

    F10

    30.2

    58.7

    31.8

    101.6

    7/16"-14UNCx24

    S

    4"

    F32

    77.8

    130.2

    101.6

    102.4

    5/8"-11UNCx30



    T7EE(S)

    P1

    1-1/2"

    F12

    35.7

    69.9

    38.1

    139.7

    M12x30

    P2

    1-1/2"

    F12

    35.7

    69.9

    37.1

    98.6

    M12x30

    S

    4"

    F32

    77.8

    130.2

    101.6

    115

    M16x30



    T67DC

    P1

    1-1/4"

    F10

    30.2

    58.7

    31.8

    82.6

    7/16"-14UNCx22.3

    P2

    1"

    F08

    26.2

    52.4

    25.4

    74.7

    3/8"-16UNCx19.0

    S

    3"

    F24

    61.9

    106.4

    76.2

    88.9

    5/8"-11UNCx28.5



    T67EC

    P1

    1-1/2"

    F12

    35.7

    69.9

    37.1

    98.6

    1/2"-13UNCx23.4

    P2

    1"

    F08

    26.2

    52.4

    25.4

    74.7

    3/8"-16UNCx19.0

    S

    3-1/2"

    F28

    69.9

    120.7

    88.9

    102.4

    5/8"-11UNCx29.5

    Installation Dimensions

    T6 & T7 Series Tandem Pumps Dual-Flow Solutions for Maximum Efficiency 05

    Shaft extension

    Model

    Shaft code

    Max torque (N.m)



    L1



    L2



    DIA



    K1xK2



    H1



    M1

    T7BB

    5

    70.0

    40.0

    25.006/24.993

    8.00x7.00

    28.22

    -



    T7BBS

    1

    238

    58.2

    31.7

    22.225/22.200

    4.76x4.71

    24.53

    -

    2

    357

    71.4

    38.1

    25.400/25.370

    6.35x6.30

    28.22

    M8x16

    3

    40.7

    24.5

    SAE J498b class1, Diametral pitch 16/32,13T

    -

    4

    45.5

    24.5

    SAE J498b class1, Diametral pitch 16/32,15T

    -

    T7DB

    5

    87.9

    50.0

    32.018/32.002

    10.00x8.00

    35.0

    M10x20



    T7DBS

    1

    83.6

    49.3

    31.75/31.70

    7.94x7.89

    35.27

    M10x20

    2

    73.2

    38.1

    31.75/31.70

    7.94x7.89

    35.27

    -

    3

    55.2

    38.0

    SAE J498b class1, Diametral pitch 12/24,14T

    -

    4

    77.7

    48.02

    SAE J498b class1, Diametral pitch 12/24,14T

    -

    T6DD, T7DD

    5

    68.0

    50.0

    32.018/32.002

    10.00x8.00

    35.0

    M10x20



    T6DDS, T7DDS

    1

    84.0

    49.3

    31.75/31.70

    7.94x7.89

    35.27

    M10x20

    2

    91.0

    50.8

    38.10/38.05

    9.52x9.47

    42.36

    M10x20

    3

    56.0

    38.0

    SAE J498b class1, Diametral pitch 12/24,14T

    -

    4

    46.0

    24.5

    SAE J498b class1, Diametral pitch 16/32,15T

    -

    T7EB, T7ED

    5

    90.0

    50.0

    38.018/38.002

    10.00x8.00

    41.3

    M10x20



    T7EBS, T7EDS

    1

    90.9

    50.8

    38.10/38.05

    9.52x9.47

    42.36

    M10x20

    2

    61.9

    38.1

    31.75/31.70

    7.94x7.89

    35.27

    -

    3

    55.9

    38.1

    SAE J498b class1, Diametral pitch 12/24,14T

    -

    4

    62.2

    31.5

    SAE J498b class1, Diametral pitch 12/24,17T

    -

    T6EE,T7EE

    2

    92.0

    63.0

    45.000/44.975

    14.00x9.00

    48.5

    M12x24



    T6EES T7EES

    1

    90.9

    63.5

    38.100/38.075

    9.52x9.47

    42.36

    M10x20

    3

    62.2

    31.5

    SAE J498b class1, Diametral pitch 12/24,17T

    -

    4

    75.0

    48.8

    SAE J498b class1, Diametral pitch 8/16,13T

    -



    T67CB, T6CC

    1

    238

    58.2

    31.7

    22.225/22.200

    4.76x4.71

    24.53

    -

    2

    357

    71.4

    38.1

    25.400/25.370

    6.35x6.30

    28.22

    M8x16

    3

    545

    45.5

    24.5

    SAE J498b class1, Diametral pitch 16/32,15T

    -

    5

    343

    40.7

    24.5

    SAE J498b class1, Diametral pitch 16/32,13T

    -





    T67DB, T67DC, T6DC

    1

    721

    83.6

    49.3

    31.750/31.700

    7.94x7.89

    35.27

    M10x20

    2

    577

    73.2

    38.1

    31.750/31.700

    7.94x7.89

    35.27

    -

    3

    55.2

    38.0

    SAE J498bclass1, Diametral pitch 12/24,14T

    -

    4

    77.7

    48.0

    SAE J498b class1, Diametral pitch 12/24,14T

    -

    5

    83.4

    60.0

    34.900/34.875

    7.94x7.89

    38.42

    M8x16



    T67EB, T67EC, T6EC, T6ED

    1

    90.9

    50.8

    38.100/38.050

    9.52x9.47

    42.36

    M10x20

    2

    577

    61.9

    38.1

    31.750/31.700

    7.94x7.89

    35.27

    -

    3

    55.7

    38.0

    SAE J498b class1, Diametral pitch 12/24,14T

    -

    4

    62.2

    31.5

    SAE J498bclass1, Diametral pitch 12/24,17T

    -

    Work at maximum flow and pressure.
