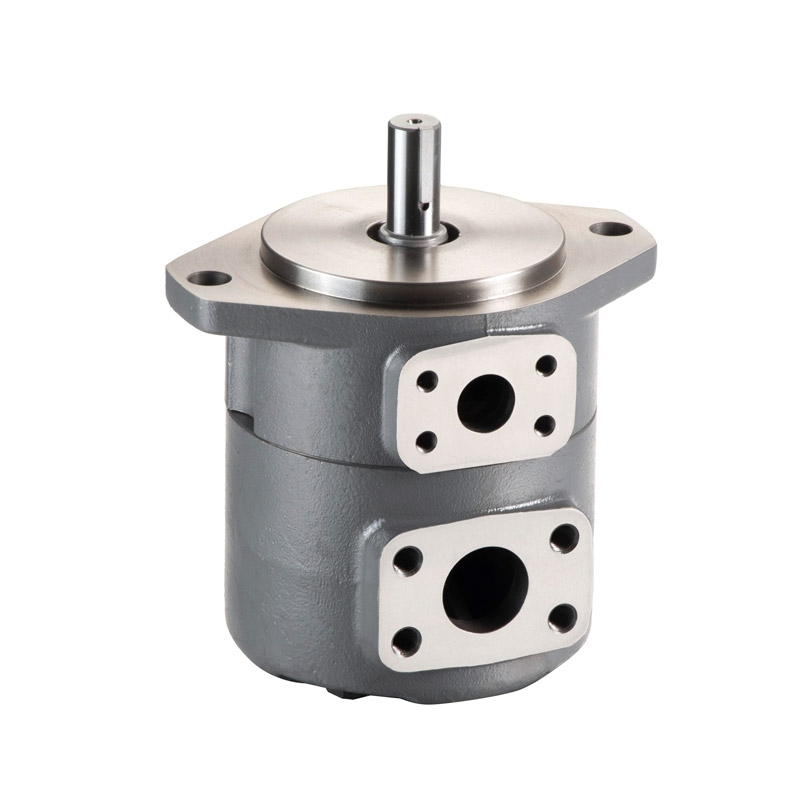

Tokimec Equivalent SQP Series Single Pumps SQP1 SQP2 SQP3 SQP4 - High-Performance China Suppliers Factory
Model Representation
| (F3-) | SQP2 | -21 | -1 | C | (F) | -(LH) | -18 |
| Infuse front, oil intermiscibility | Series | Displacement code | Shaft type | Outlet positions | Installation type | Rotation | Design number |
|
No-marking: Anti-wear hydraulic oil, Water glycol fluid or water-oil emulsions F3: Phosphate ester fluid |
SQP1 | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14 |
1: Belt key straight shaft 86: Heavy belt key straight shaft |
(Viewed from cover end of pump) A: Opposite inlet B: 90° CCW from inlet C: Inline with inlet D: 90° CW from inlet |
No-marking: Flange Mounting F: Foot Mounting |
(Viewed from shaft end of pump) LH: Left hand for counter clockwise No-marking: Right hand for clockwise |
15 |
| SQP2 | 10, 12, 14, 15, 17, 19, 21, 25 | 18 | |||||
| SQP3 | 21, 25, 30, 32, 35, 38, 45 | ||||||
| SQP4 | 42, 45, 50, 57, 60, 66, 75 |
USgpm Flow(USgpm) at 1200r/min and 0.69MPa.
Technical Data
| Series | Displacement code | Geometric displacement (mL/r) | With antiwear hydraulic oil or phosphate ester fluid | With water glycol fluid | With water-oil emulsions | Min. Speed (r/min) | |||
| Max. pressure (MPa) | Max. speed (r/min) | Max. pressure (MPa) | Max. speed (r/min) | Max. pressure (MPa) | Max. speed (r/min) | ||||
| SQP1 | 2 | 7.5 | 13.8 | 1800 | 13.8 | 1200 | 6.9 | 1200 | 600 |
| 3 | 10.2 | ||||||||
| 4 | 12.8 | 17.2 | 15.9 | ||||||
| 5 | 16.7 | ||||||||
| 6 | 19.2 | ||||||||
| 7 | 22.9 | ||||||||
| 8 | 26.2 | ||||||||
| 9 | 28.8 | ||||||||
| 10 | 31.0 | ||||||||
| 11 | 35.0 | ||||||||
| 12 | 37.9 | 15.7 | 13.8 | ||||||
| 14 | 44.2 | 13.8 | |||||||
| SQP2 | 10 | 32.5 | 17.2 | 1800 | 15.9 | 1200 | 6.9 | 1200 | 600 |
| 12 | 38.3 | ||||||||
| 14 | 43.3 | ||||||||
| 15 | 46.7 | ||||||||
| 17 | 52.5 | ||||||||
| 19 | 59.2 | ||||||||
| 21 | 65.0 | ||||||||
| 25 | 79.2 | ||||||||
| SQP3 | 21 | 66.7 | 17.2 | 1800 | 15.9 | 1200 | 6.9 | 1200 | 600 |
| 25 | 79.2 | ||||||||
| 30 | 95.0 | ||||||||
| 32 | 100 | ||||||||
| 35 | 109 | ||||||||
| 38 | 118 | ||||||||
| 45 | 140 | 13.8 | 13.8 | ||||||
| SQP4 | 42 | 134 | 17.2 | 1800 | 15.9 | 1200 | 6.9 | 1200 | 600 |
| 45 | 140 | ||||||||
| 50 | 156 | ||||||||
| 57 | 178 | ||||||||
| 60 | 189 | ||||||||
| 66 | 207 | ||||||||
| 75 | 237 | 13.8 | 13.8 | ||||||
USgpm Flow(USgpm) at 1200r/min and 0.69MPa.
Permit surpassing the top pressure 10% instantaneous pressure, within 0.5 Second.
Permit surpassing the top pressure 10% instantaneous pressure, within 0.5 Second.
Noise Data
Installation Dimensions
Frequently Asked Questions (FAQ)
What types of fluids are compatible with the SQP series single pumps?
Standard models are compatible with anti-wear hydraulic oil, water glycol fluid, or water-oil emulsions. Models with the "F3-" prefix are designed for use with phosphate ester fluids.
What are the available mounting configurations for Tokimec SQP series pumps?
The pumps support Flange Mounting as standard (no-marking in the model code) and Foot Mounting (designated by the 'F' code).
How can I determine the rotation direction of the pump from the model code?
Viewed from the shaft end of the pump, 'LH' indicates left-hand (counter-clockwise) rotation, while a no-marking designation indicates right-hand (clockwise) rotation.
What is the minimum operating speed for the SQP1, SQP2, SQP3, and SQP4 series?
The minimum operating speed for all single pump series (SQP1 through SQP4) is 600 r/min.
What does the displacement code represent in the model representation?
The displacement code represents the USgpm flow rate measured at a speed of 1200 r/min and a pressure of 0.69 MPa.
Is it permissible to exceed the maximum rated pressure of the SQP pumps?
Yes, the pumps permit surpassing the top pressure by 10% instantaneous pressure, provided it occurs within a duration of 0.5 seconds.
