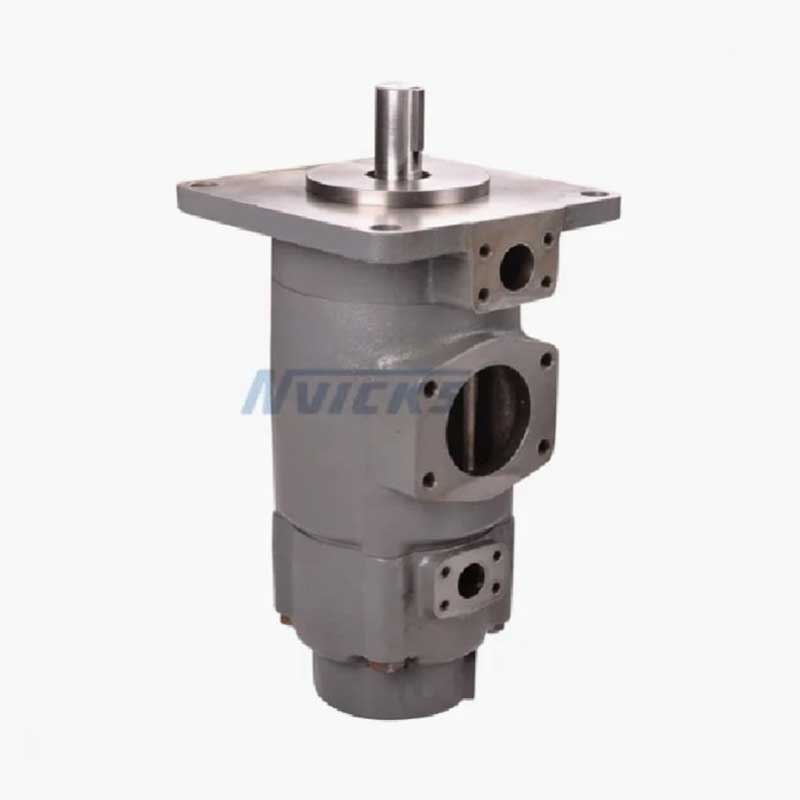

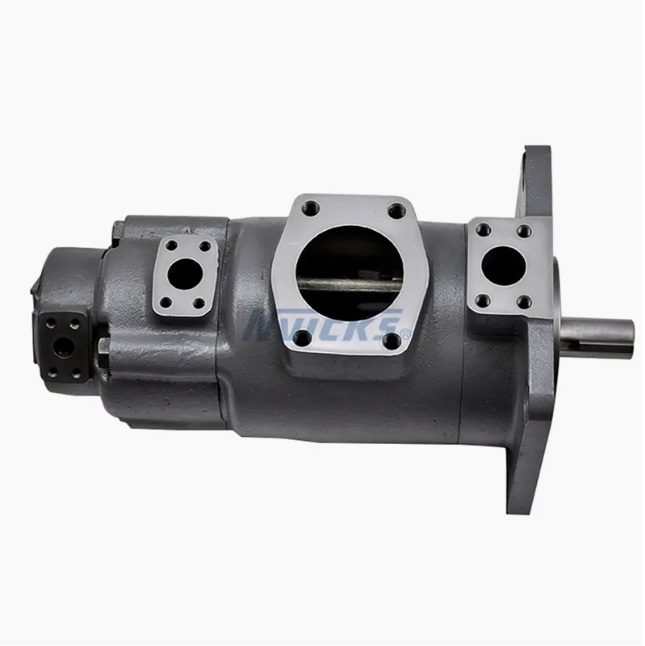

High-Performance Tokimeco Treble Vane Pump - China Suppliers & Factory for SQP321, SQP421, SQP431, SQP432
Model Designation
(F3-) |
SQP321 |
-35 |
-17 |
5 |
-86 |
CCC | (F) |
-(LH) |
-18 |
| Infuse front, oil intermiscibility | Series | Flow-shaft end code | Flow-mid code | Flow-cover end pump port connection |
Shaft type | Port positions | Installation type | Rotation | Design number |
| No-marking: Anti-wear hydraulic oil, Water glycol fluid or water-oil emulsions F3-phosphate ester fluid |
SQP321 |
21, 25, 30, 32, 35, 38, 45 | 10, 12, 14, 15, 17, 19, 21, 25 | 2, 3, 4, 5, 6, 7, 8 |
86-Heavy belt key straight shaft | See below | No-marking: Flange Mounting F-Foot Mounting |
(Viewed from shaft end of pump) LH-Left hand for counter clockwise No marking-Right hand for clockwise |
18 |
SQP421 |
42, 45, 50, 57, 60, 66, 75 | 10, 12, 14, 15, 17, 19, 21, 25 | 2, 3, 4, 5, 6, 7, 8 |
||||||
SQP431 |
42, 45, 50, 57, 60, 66, 75 | 21, 25, 30, 32, 35, 38, 45 | 2, 3, 4, 5, 6, 7, 8, 9, 11, 12, 14 | ||||||
SQP432 |
42, 45, 50, 57, 60, 66, 75 | 21, 25, 30, 32, 35, 38, 45 | 10, 12, 14, 15, 17, 19, 21, 25 |
Outlet Positions (Viewed from cover end of pump)
No.1 outlet positions |
|
A |
opposite inlet |
B |
90° CCW from inlet |
C |
Inline with inlet |
D |
90° CW from inlet |
|
SQP321、SQP421 No.2 Outlet positions |
SQP431、SQP432 No.2 Outlet positions |
|
A |
No.2 outlet 135° CCW from inlet |
No.2 outlet opposite inlet |
B |
No.2 outlet 45° CCW from inlet |
No.2 outlet 90° CCW from inlet |
C |
No.2 outlet 45° CW from inlet |
No.2 outlet inline with inlet |
D |
No.2 outlet 135° CW from inlet |
No.2 outlet 90° CW from inlet |
|
SQP321、SQP421 No.3 Outlet positions |
SQP431、SQP432 No.3 Outlet positions |
|
A |
No.3 outlet opposite inlet |
No.3 outlet 135° CCW from inlet |
B |
No.3 outlet 90° CCW from inlet |
No.3 outlet 45° CCW from inlet |
C |
No.3 outlet inline with inlet |
No.3 outlet 45° CW from inlet |
D |
No.3 outlet 90° CW from inlet |
No.3 outlet 135° CW from inlet |
Frequently Asked Questions (FAQ)
What fluid options are compatible with the Tokimeco SQP series treble vane pumps?
Standard models without special marking are compatible with anti-wear hydraulic oil, water glycol fluid, or water-oil emulsions. For applications requiring phosphate ester fluid, models designated with the "F3-" prefix must be selected.
What does the "86" shaft type code represent in the model designation?
The "86" shaft type code represents a heavy belt key straight shaft, which is designed to handle robust mechanical transmission configurations.
How are the outlet positions defined for the SQP series?
The outlet positions (No. 1, No. 2, and No. 3) are defined as viewed from the cover end of the pump. They are specified using letters A, B, C, and D, which indicate their angular orientation relative to the main inlet.
What are the standard rotation options for these pumps?
Viewed from the shaft end of the pump, standard models without a marking run in a right-hand (clockwise) direction. Models marked with "LH" run in a left-hand (counter-clockwise) direction.
How is the flow rate measured for the SQP treble pump series?
Flow rates are measured in USgpm (US gallons per minute) and are rated under standard test conditions of 1200 r/min and a pressure of 0.69 MPa.
