Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump Bomba (3).jpg
Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump Bomba (5).jpg
Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump Bomba (4).jpg
Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump Bomba (1).jpg
Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump Bomba (2).jpg

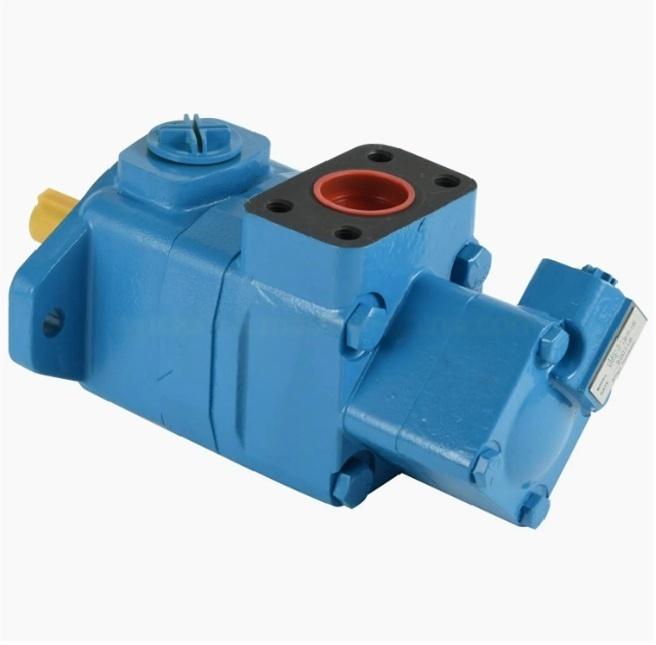

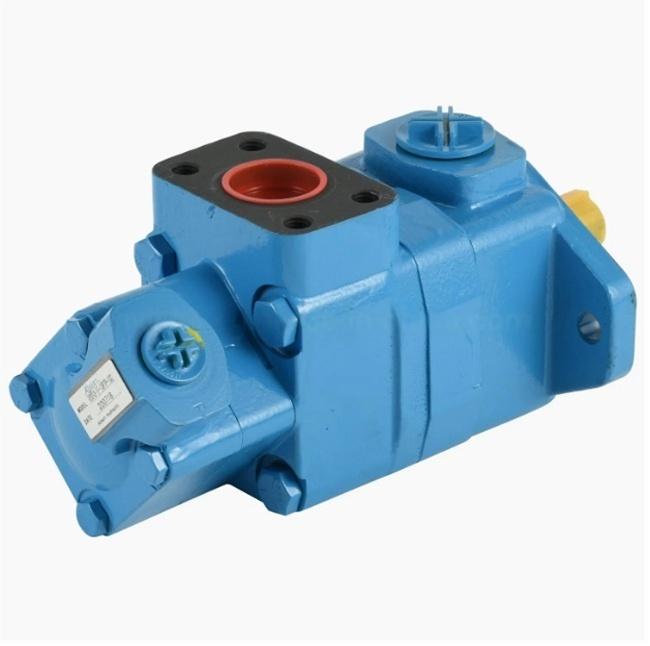

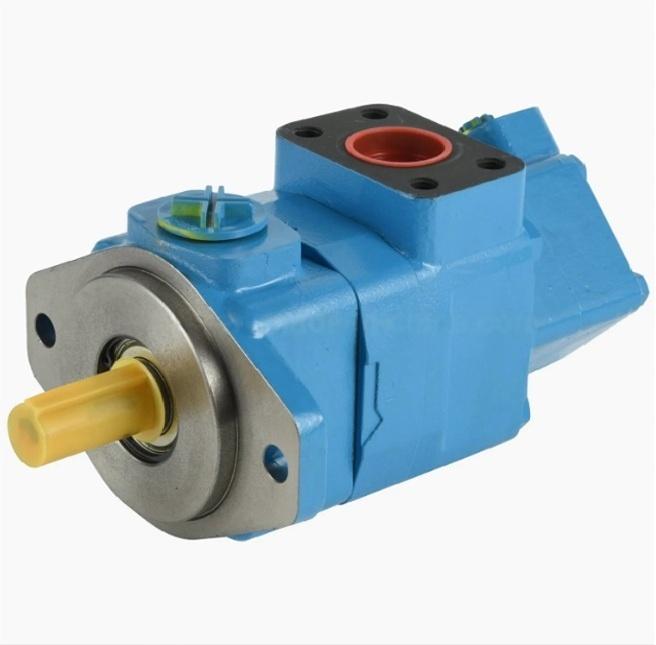

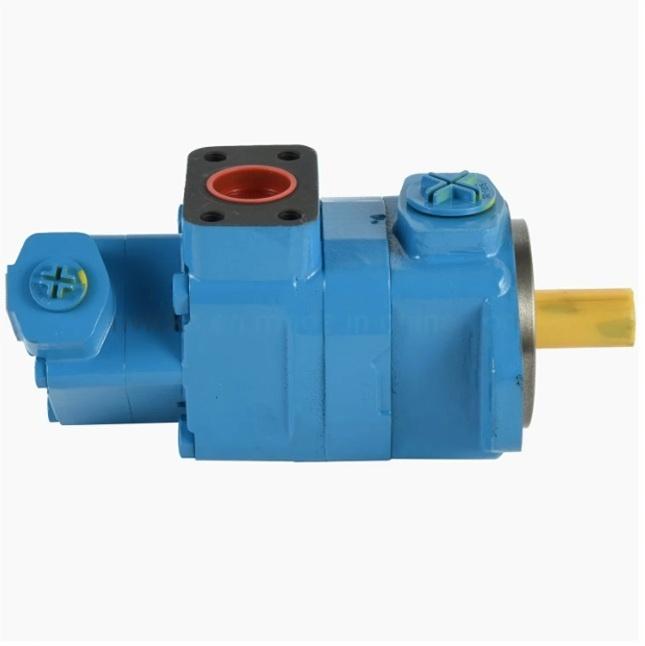

China Suppliers Factory Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump for Mobile Cranes

In mobile cranes, the efficiency of hydraulic systems plays a crucial role in determining the lifting capacity, precision of movement control, and operational safety. Introducing the V2020 double pump, expertly crafted to meet these demanding challenges. Designed specifically for mobile crane applications, this hydraulic pump normally powers two distinct components of the system, ensuring optimal performance and reliability. As a leading product from a trusted China supplier, our V2020 double pump exemplifies the high standards of quality expected from a top-tier factory. Enhance your mobile crane's capabilities with our innovative hydraulic solutions
    Contact us
    Product Details

    Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump Bomba (1)
    Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump Bomba (2)
    Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump Bomba (4)
    Eaton Vickers Vane Double Pump V2010 V2020 Hydraulic Oil Pump Bomba (5)

    Model Designation

    (F3-) V2010 -1 F 13 S 3 S -1 CC -12 -R
    Note Series Mounting Inlet port connections Flow-Shaft end pump No. 1 outlet port Flow-cover end pump No. 2 outlet port Shaft type Outlet positions Design number Rotation
    Omit if not Required F3-: Viton seals V2010 1- SAE B 2 bolt flange 4" rabbet

    6- SAE C 2 bolt flange 3.25" rabbet    		 F- 4 bolt flange 6, 7, 8, 9, 10, 11, 12, 13 S-1.062- 12UN-2Bthd 1, 2, 3, 4, 5, 6, 7 S-.750-16 St.Thd. -1 Str key

    -11 spline    		 see below -12 (Viewed from shaft end of pump)
    -R right hand for clockwise
    -L left hand for counter-clockwise
    V2020 6, 7, 8, 9, 10, 11, 12, 13 S-1.062-12 St.Thd.

    Technical Data

    Outlet positions V2010 V2020
    No.1 outlet opposite inlet AA 1350 No.2 outlet 1350 CCW from inlet No.2 outlet opposite inlet
    AB No.2 outlet 450 CCW from inlet No.2 outlet 900 CCW from inlet
    AC No.2 outlet 450 CW from inlet No.2 outlet inline with inlet
    AD No.2 outlet 1350 CW from inlet No.2 outlet 900 CW from inlet
    No.1 outlet 900 CCW from inlet BA No.2 outlet 1350 CCW from inlet No.2 outlet opposite inlet
    BB No.2 outlet 450 CCW from inlet No.2 outlet 900 CCW from inlet
    BC No.2 outlet 450 CW from inlet No.2 outlet inline with inlet
    BD No.2 outlet 1350 CW from inlet No.2 outlet 900 CW from inlet
    No.1 outlet inline with inlet CA No.2 outlet 1350 CCW from inlet No.2 outlet opposite inlet
    CB No.2 outlet 450 CCW from inlet No.2 outlet 900 CCW from inlet
    CC No.2 outlet 450 CW from inlet No.2 outlet inline with inlet
    CD No.2 outlet 1350 CW from inlet No.2 outlet 900 CW from inlet
    No.1 outlet 900 CW from inlet DA No.2 outlet 1350 CCW from inlet No.2 outlet opposite inlet
    DB No.2 outlet 450 CCW from inlet No.2 outlet 900 CCW from inlet
    DC No.2 outlet 450 CW from inlet No.2 outlet inline with inlet
    DD No.2 outlet 1350 CW from inlet No.2 outlet 900 CW from inlet
    Eaton-Vickers-Vane-Double-Pump-V2010
    USgpm Dimension
    Shaft end Cover end A B C
    7, 8, 9 1, 2, 3, 4, 5, 6, 7 213.0
    219.1
    224.1    		 190.0
    196.1
    201.1    		 113.5
    10, 11 1, 2, 3, 4, 5, 6, 7 218.2
    224.1
    229.1    		 195.0
    201.1
    206.1    		 118.5
    12, 13 1, 2, 3, 4, 5, 6, 7 222.0
    228.1
    233.1    		 199.0
    205.1
    210.1    		 121.5
    Eaton-Vickers-Vane-Double-Pump-V2010-V2020
    USgpm Dimension
    Shaft end Cover end A B C
    7, 8, 9 6, 7, 8, 9 213.4
    219.5    		 187.7
    193.8    		 114.0
    10, 11 6, 7, 8, 9, 10, 11 218.4
    224.5
    229.5    		 192.7
    198.8
    203.8    		 119.0
    12, 13 6, 7, 8, 9, 10, 11 222.4
    228.5
    233.5    		 196.7
    202.8
    207.8    		 122.5

    Splined Shaft Type

    V2010, 2020 Series Double Pumps (3)
    V2010, 2020 Series Double Pumps (4)
    Eaton-Vickers-Vane1
    Involute spline data table
    Model Shaft code Number of teeth Pitch Major diameter Pitch diameter Minor diameter Suitable for
    11 9 16/32 15.82/15.80 14.29 12.28/12.00 Tooth tip
    V10 38 11 16/32 18.63/18.50 17.46 15.24/14.99 Tooth side
    11 11 16/32 19.01/18.93 17.46 15.90/15.62 Tooth side
    V20 38 11 16/32 18.63/18.50 17.46 15.24/14.99 Tooth side
    62 9 16/32 15.82/15.80 14.29 12.28/12.00 Tooth tip
    V2010 V2020 11 13 16/32 22.17/22.15 19.03 18.63/18.35 Tooth tip

    Frequently Asked Questions

    What does the "F3-" prefix signify in the Eaton Vickers model designation?

    The "F3-" prefix indicates that the pump is equipped with Viton seals. If Viton seals are not required for your application, this prefix can be omitted.

    What mounting options are available for the V2010 and V2020 double pumps?

    Two mounting options are available: Code 1 corresponds to SAE B 2-bolt flange with a 4" rabbet, and Code 6 corresponds to SAE C 2-bolt flange with a 3.25" rabbet.

    How do I interpret the rotation options for these double pumps?

    Rotation is determined by viewing the pump from the shaft end. Code "-R" indicates right-hand rotation (clockwise), while Code "-L" indicates left-hand rotation (counter-clockwise).

    What is the difference in outlet port configurations between V2010 and V2020?

    For the V2010 model, the No. 2 outlet port is typically configured with an S-0.750-16 straight thread. For the V2020 model, the No. 2 outlet port configuration uses an S-1.062-12 straight thread. Both models offer various outlet position options relative to the inlet, designated by codes like AA, AB, AC, and AD.

    What are the involute spline specifications for the V2010 and V2020 series with Shaft Code 11?

    For the V2010 and V2020 models, Shaft Code 11 features 13 teeth, a 16/32 pitch, a major diameter of 22.17/22.15, a pitch diameter of 19.03, and a minor diameter of 18.63/18.35. This configuration is suitable for tooth tip contact.
