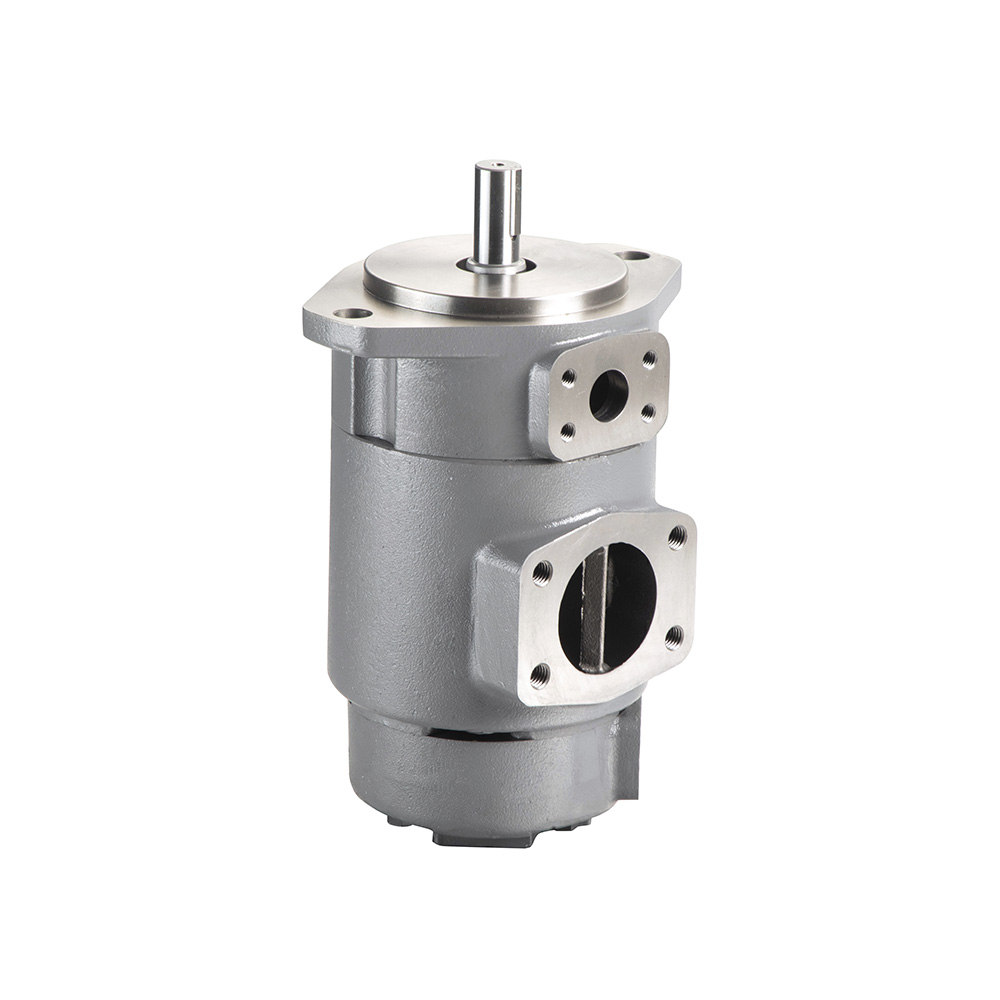

Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21.JPG
Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21(4).jpg
Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21(2).jpg
Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21 (5).jpg
Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21 (3).jpg
Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21 (1).jpg

China Suppliers Factory: Albert Double Stage Hydraulic Vane Pump - TOKIMEC SQP Series for Precision Machining

In the competitive landscape of precision machining, where micro-level accuracy is essential and energy costs are on the rise, a reliable hydraulic system is crucial. The TOKIMEC SQP series double pump configuration is expertly designed to address these high demands, ensuring efficiency, dependability, and quiet operation. This makes it the perfect hydraulic solution for various machine tools, including machining centers, grinders, and CNC lathes. As a leading factory in China, we pride ourselves on being top suppliers of advanced hydraulic systems that meet the stringent requirements of the industry. Choose TOKIMEC for unparalleled performance and quality in your machining processes
    Contact us
    Product Details

    Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21(4)
    Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21(2)
    Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21 (5)
    Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21 (3)
    Albert Double Stage Hydraulic Vane Pump for Industrial Applications Tokimec Sqp Type Sqp43 Sqp42 Sqp41 Sqp32 Sqp31 Sqp21 (1)

    Model Designation

    Albert-Double-Stage

    (F3-)

    SQP32

    -35

    -17

    -86

    CD

    (F)

    -(LH)

    		 -18
    Infuse front, oil intermiscibility Series Displacement code of shaft end pump Displacement code of cover end pump Shaft type Port positions

    Installation type

    		 Rotation Design number
    No-marking: Anti-wear hydraulic oil, Water glycol fluid or water-oil emulsions

    F3- phosphate ester fluid

    SQP21

    		 10, 12, 14, 15, 17, 19, 21, 25 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14 1-Belt key straight shaft

    86-Heavy belt key straight shaft     		See below No-marking: Flange Mounting
    F-Foot Mountion     		(Viewed from shaft end of pump)

    LH-Left hand for counter clockwise
    No marking-Right hand for clockwise     		18

    SQP31

    		 21, 25, 30, 32, 35, 38, 45 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14

    SQP32

    		 21, 25, 30, 32, 35, 38, 45 10, 12, 14, 15, 17, 19, 21, 25

    SQP41

    		 42, 45, 50, 57, 60, 66, 75 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14

    SQP42

    		 42, 45, 50, 57, 60, 66, 75 10, 12, 14, 15, 17, 19, 21, 25

    SQP43

    		 42, 45, 50, 57, 60, 66, 75 21, 25, 30, 32, 35, 38, 45
    USgpm Flow(USgpm) at 1200r/min and 0.69MPa.

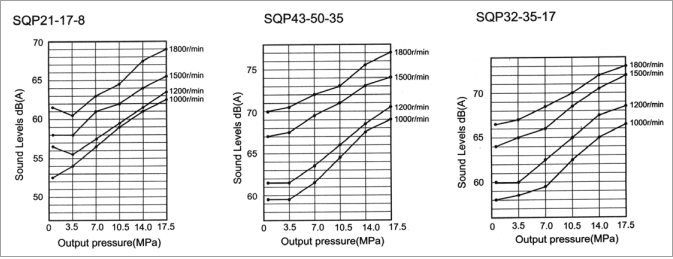

    Noise Data

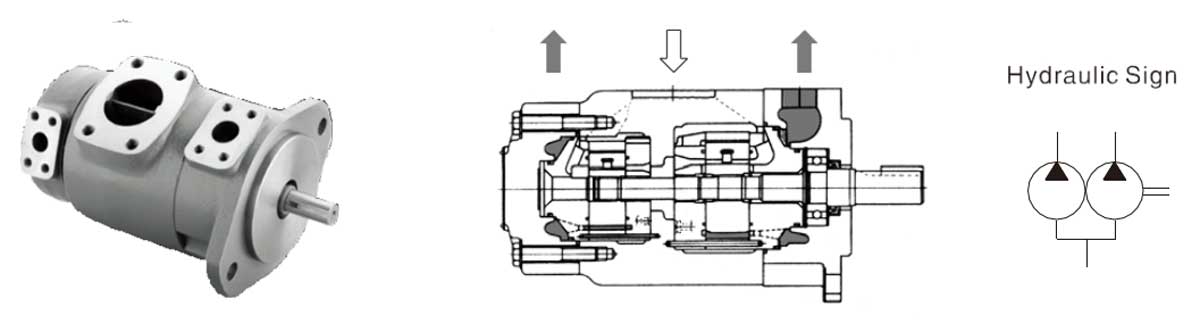

    SQP Series Double Pump detail (1)

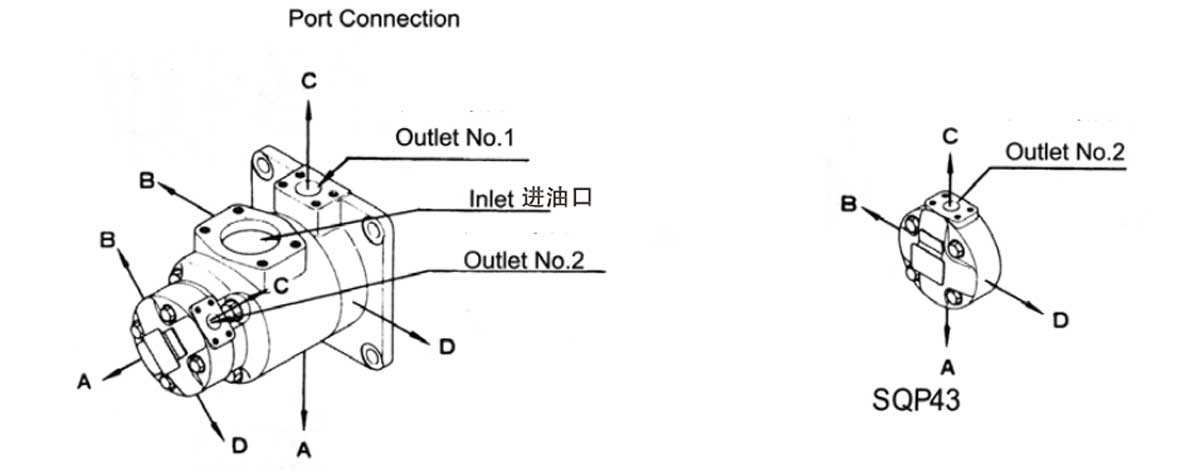

    Outlet Positions (Viewed from cover end of pump)

    Albert-Double-Stage

    Port positions

    All series (except SQP43)

    SQP43 series

    No.1 outlet
    opposite inlet

    AA

    No.2 outlet 135°CCW from inlet

    No.2 outlet opposite inlet

    AB

    No.2 outlet 45°CCW from inlet

    No.2 outlet 90°CCW from inlet

    AC

    No.2 outlet 45°CW from inlet

    No.2 outlet inline with inlet

    AD

    No.2 outlet 135°CW from inlet

    No.2 outlet 90°CW from inlet

    No.1 outlet 90°
    CCW from inlet

    BA

    No.2 outlet 135°CCW from inlet

    No.2 outlet opposite inlet

    BB

    No.2 outlet 45°CCW from inlet

    No.2 outlet 90°CCW from inlet

    BC

    No.2 outlet 45°CW from inlet

    No.2 outlet inline with inlet

    BD

    No.2 outlet 135°CW from inlet

    No.2 outlet 90°CW from inlet

    No.1 outlet inline with inlet

    CA

    No.2 outlet 135°CCW from inlet

    No.2 outlet opposite inlet

    CB

    No.2 outlet 45°CCW from inlet

    No.2 outlet 90°CCW from inlet

    CC

    No.2 outlet 45°CW from inlet

    No.2 outlet inline with inlet

    CD

    No.2 outlet 135°CW from inlet

    No.2 outlet 90°CW from inlet

    No.1 outlet 90°CW
    from inlet

    DA

    No.2 outlet 135°CCW from inlet

    No.2 outlet opposite inlet

    DB

    No.2 outlet 45°CCW from inlet

    No.2 outlet 90°CCW from inlet

    DC

    No.2 outlet 45°CW from inlet

    No.2 outlet inline with inlet

    DD

    No.2 outlet 135°CW from inlet

    No.2 outlet 90°CW from inlet

    Technical Data

    Series

    Shaft end pump (No.1 outlet)

    Cover end pump (No.2 outlet)

    r/min
    Max. speed

    Min. speed
    r/min

    Displacement code

    mL/r
    Geometric displacement

    MPa
    Max. pressure

    Displacement code

    mL/r
    Geometric displacement

    MPa
    Max. pressure

    SQP21

    10

    32.5

    As SQP2

    2

    7.5

    As SQP1

    		 As SQP Series single pumps

    600

    12

    38.3

    14

    43.3

    3

    10.2

    15

    46.7

    17

    52.5

    4

    12.8

    19

    59.2

    21

    65.0

    5

    16.7

    25

    79.2

    SQP31

    21

    66.7

    SQP3 As SQP3

    6

    19.2

    25

    79.2

    7

    22.9

    30

    95.0

    32

    100

    8

    26.2

    35

    109

    38

    118

    9

    28.8

    45

    140

    SQP41

    42

    134

    As SQP4

    10

    31.0

    45

    140

    50

    156

    11

    35.0

    57

    178

    60

    189

    12

    37.9

    66

    207

    14

    44.2

    75

    237

    SQP32

    21

    66.7

    As SQP3

    10

    32.5

    As SQP2

    		 As SQP Series single pumps

    600

    25

    79.2

    30

    95.0

    12

    38.3

    32

    100

    35

    109

    14

    43.3

    38

    118

    45

    140

    15

    46.7

    SQP42

    42

    134

    As SQP4

    17

    52.5

    45

    140

    50

    156

    19

    59.2

    57

    178

    60

    189

    21

    65.0

    66

    207

    75

    237

    25

    79.2

    SQP43

    42

    134

    As SQP4

    21

    66.7

    As SQP3

    		 As SQP Series single pumps

    600

    45

    140

    25

    79.2

    50

    156

    30

    95.0

    57

    178

    32

    100

    60

    189

    35

    109

    66

    207

    38

    118

    75

    237

    45

    140
    USgpm Flow(USgpm) at 1200r/min and 0.69MPa
    Permit surpassing the top pressure 10% instantaneous pressure, within 0.5 second.

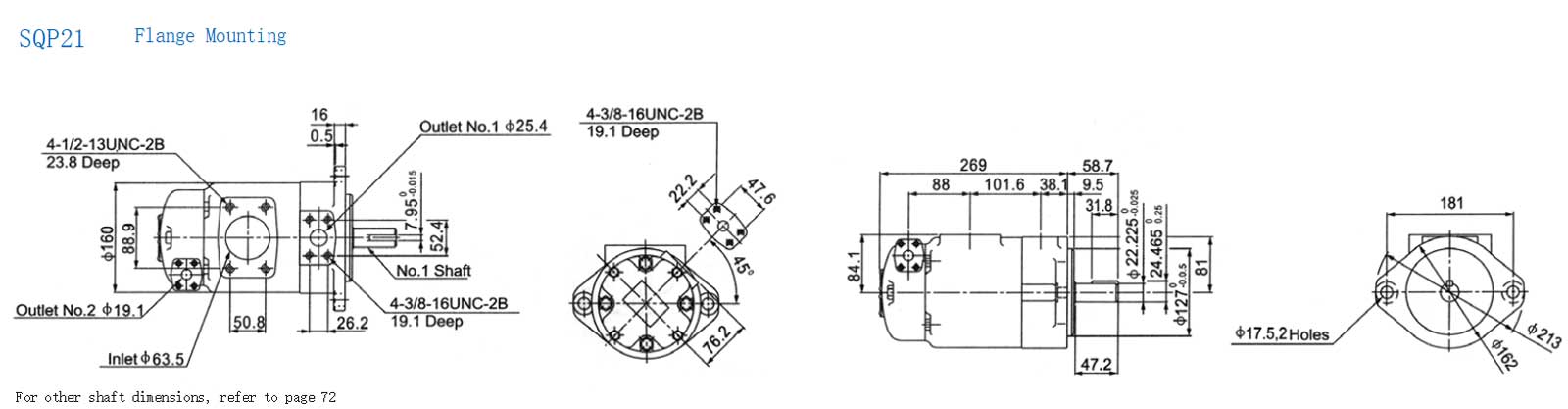

    Albert-Double-Stage

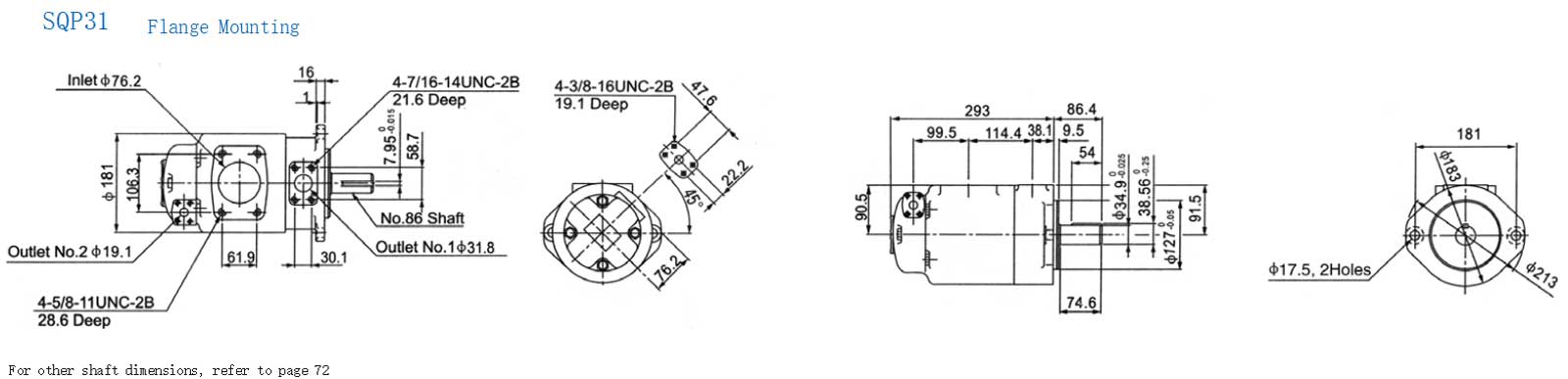

    Albert-Double-Stage-1

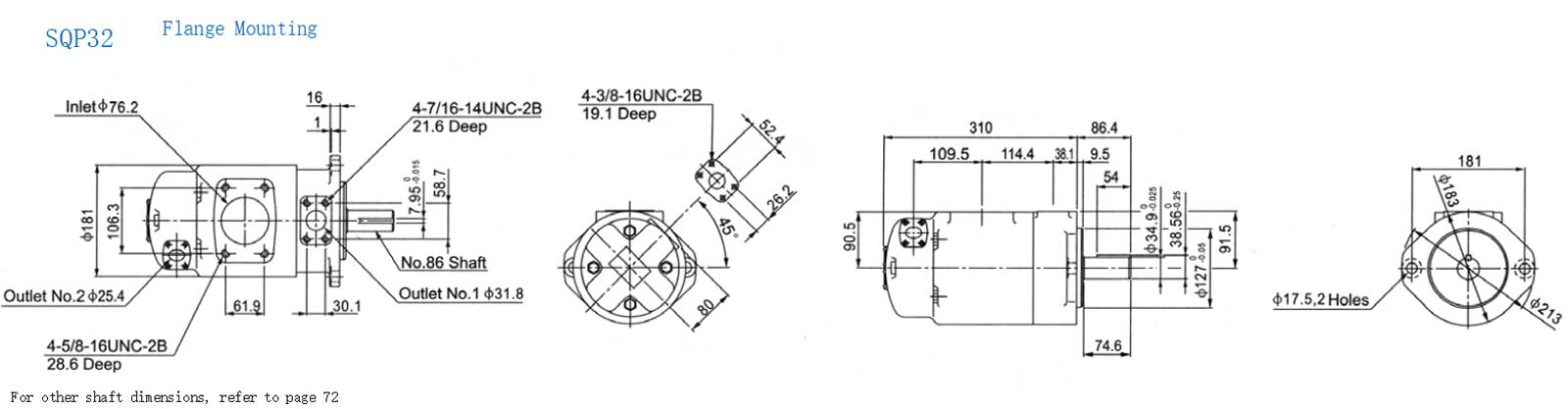

    Albert-Double-Stage-2

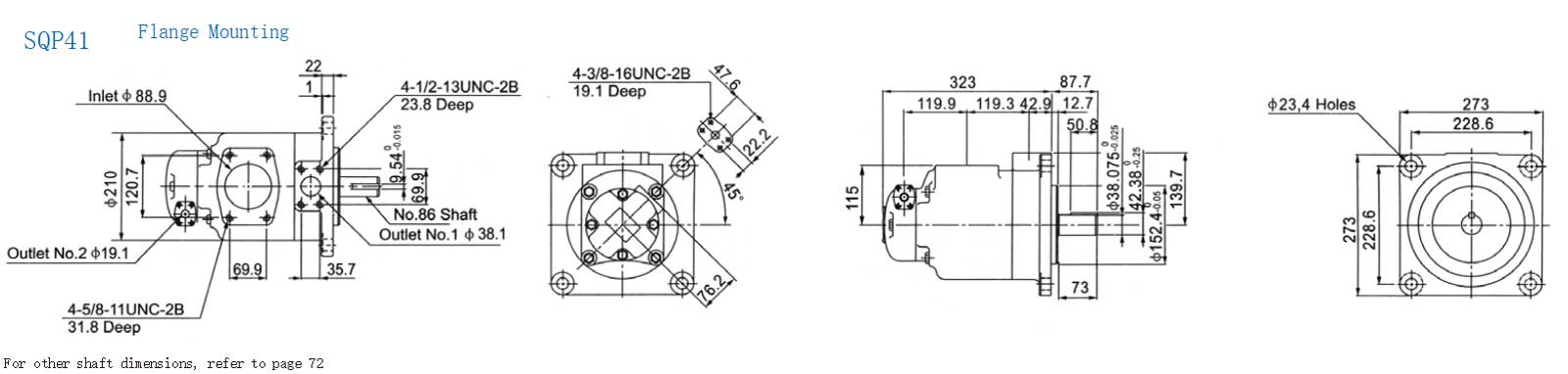

    Albert-Double-Stage-3

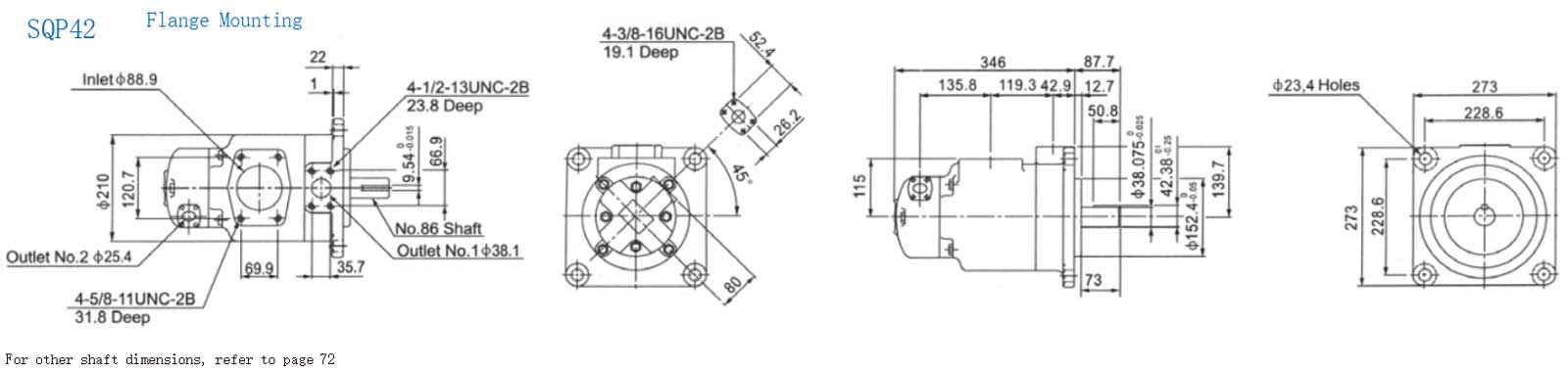

    Albert-Double-Stage-4

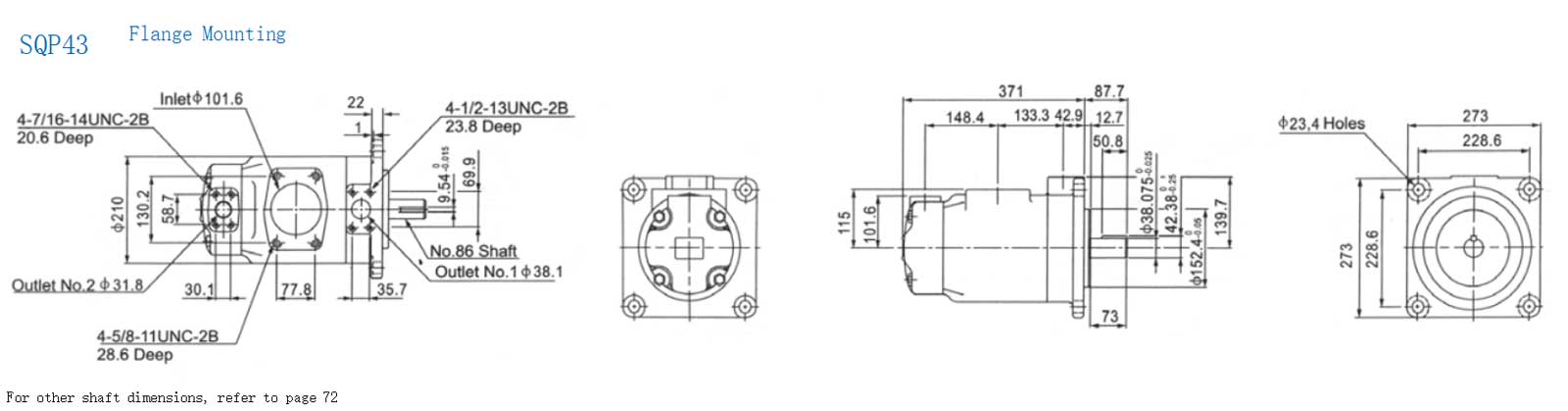

    Albert-Double-Stage-5
    Frequently Asked Questions (FAQ)
    What types of fluids are compatible with the SQP series double stage hydraulic vane pump?
    Standard models are compatible with anti-wear hydraulic oil, water glycol fluid, or water-oil emulsions. For applications using phosphate ester fluid, please select the "F3-" prefix model designation.
    What is the minimum operating speed for these double pumps?
    The minimum operating speed for the SQP series double stage hydraulic vane pumps is 600 r/min.
    How are the outlet positions configured on the SQP series pump?
    The outlet positions are designated based on the view from the cover end of the pump. They can be set in various configurations such as inline, opposite, 90° clockwise, 90° counter-clockwise, or at specific angles depending on the model code.
    Can the SQP double pumps handle instantaneous pressure spikes above their maximum limit?
    Yes, the pump permits surpassing the maximum rated pressure by up to 10% for instantaneous pressure spikes, provided the duration does not exceed 0.5 seconds.
    What does the "86" shaft type designation represent?
    In the model designation, the code "86" represents a heavy belt key straight shaft, whereas "1" represents a standard belt key straight shaft.
